25L Portable Medical Freezer -86℃/-123℉

Report 25L Portable Medical Freezer -86℃/-123℉ uses Free Piston Stirling Cooling Technology. It's a compact ULT cold storage freezer with wide temperature setting. From +18℃（64.4℉）to -86℃（123℉）,you can setting every point as you want. This kind of product can be used for Pharmaceutical cold chain transportation, Storage and transportation of biological samples, Cold chain science of life, Clinical medicine and so on.

  • -86℃/-123℉;-60℃/-76℉;-45℃/-49℉;4℃/39℉

Availability:
Inquire Add to Basket

1.8l Portable Medical Freezer 40 Degree Portable Medical Freezer 70 Degree Portable Medical Freezer Customized Portable Medical Freezer Biological Portable Medical Freezer Industrial Portable Medical Freezer Stainless Steel Portable Medical Freezer
Product Description
Product Application
Manuals
Accessories & Packaging
Video

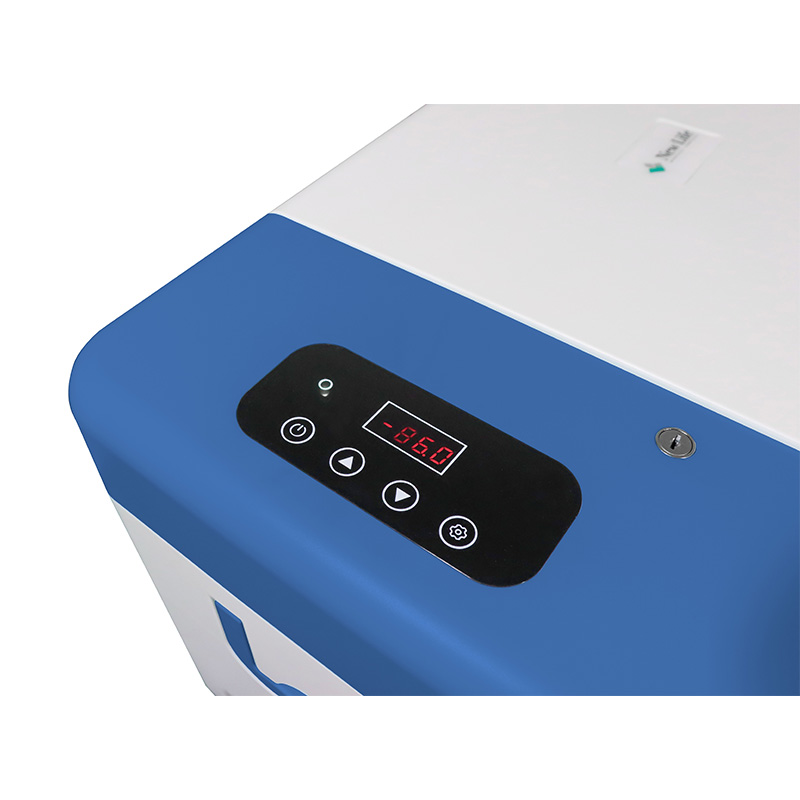

Wide operating temperature with every point setting

Precise temperature control, Inner temperature fluctuation within ±1℃

At the 25℃ ambient temperature. Very High Efficiency


Very flexibility, You can bring it to anywhere you want

Low Vibration and Noise

Use 99.999% Helium refrigerant and R-170 Cooling Conduction liquid


Cooling Chart

Warming Chart


Type DW-4525 DW-6025 DW-8625 DW-0225
Storage Volume 25L
Electric Power 100V AC to 240V AC；50Hz,60Hz；12V DC to 24V DC
Maximum Power
(Current)		 100W (0.5A@220V,4.6A@24V)
Cooling Engine Free-piston Stirling Cooler
Refrigerant Helium (He)
Heat Transport
System		 Gravity Driven Thermosiphon
Temperature
Range		 18℃ to -45℃ 18℃ to -60℃ 18℃ to -86℃ 2℃ to 8℃
Environmental
Conditions		 Non-corrosive, Non-flammable, Non-explosive, Altitude up to 2000m
（Temperature 5℃ to 35℃, maximum relative humidity 80%）
Performance
Data		 Ambient temperature is 25℃；Empty Cabinet
Take 1.5 hours from 25℃ to -45℃ Take 2.5 hours from 25℃ to -60℃ Take 3.5 hours from 25℃ to -80℃ Take 0.5 hours from 25℃ to 2℃
Temperature
Control Capability		 Target Temperature ±1℃ Target Temperature ±1℃ Target Temperature ±2℃ Target Temperature ±1℃
Steady State
Energy		 Ambient temperature is 25℃
30W 40W 75W 15W
Insulation High performance polyurethane foam
Noise <50dB <55dB <55dB <50dB
Control Sensor One RTD(PT100 Class B),precision±0.3
Security Lockable lid
Warm and cold
alarms		 Setpoint ±10℃
Defrost Method Manual
Certification CE/EMC、CE/LVD、CQC
Interior(LxWxD) 300*250*300mm
Exterior(LxWxD) 616*392*455mm
Net Weight, Empty 17.5KG
Shipping(LxWxD) 710*480*530mm
Shipping Weight 21KG


Scientific Research:

For equipment requiring ultra-low temperature environments, such as low-temperature physics experiments and superconductivity research.


Medical:

For low-temperature storage of biological samples, vaccines, and pharmaceuticals.


Space Exploration:

For cooling systems in satellites, spacecraft, and space stations.


Industrial:

For manufacturing and processing that require precise temperature control, such as cooling electronic components and processing special materials.

Accessories



Packaging
